ELEGOO Saturn LCD 3D Printer
Build Volume: 7.55in (L) * 4.72in (W) * 7.87in (H)
Technology: LCD UV Photo curing
Light source: UV Integrated LED lights (wavelength 405nm)
Layer Thickness: 0.01-0.15mm
Build Volume: 7.55in (L) * 4.72in (W) * 7.87in (H)
Technology: LCD UV Photo curing
Light source: UV Integrated LED lights (wavelength 405nm)
Layer Thickness: 0.01-0.15mm
Build Volume: 7.55in (L) * 4.72in (W) * 7.87in (H)
Technology: LCD UV Photo curing
Light source: UV Integrated LED lights (wavelength 405nm)
Layer Thickness: 0.01-0.15mm

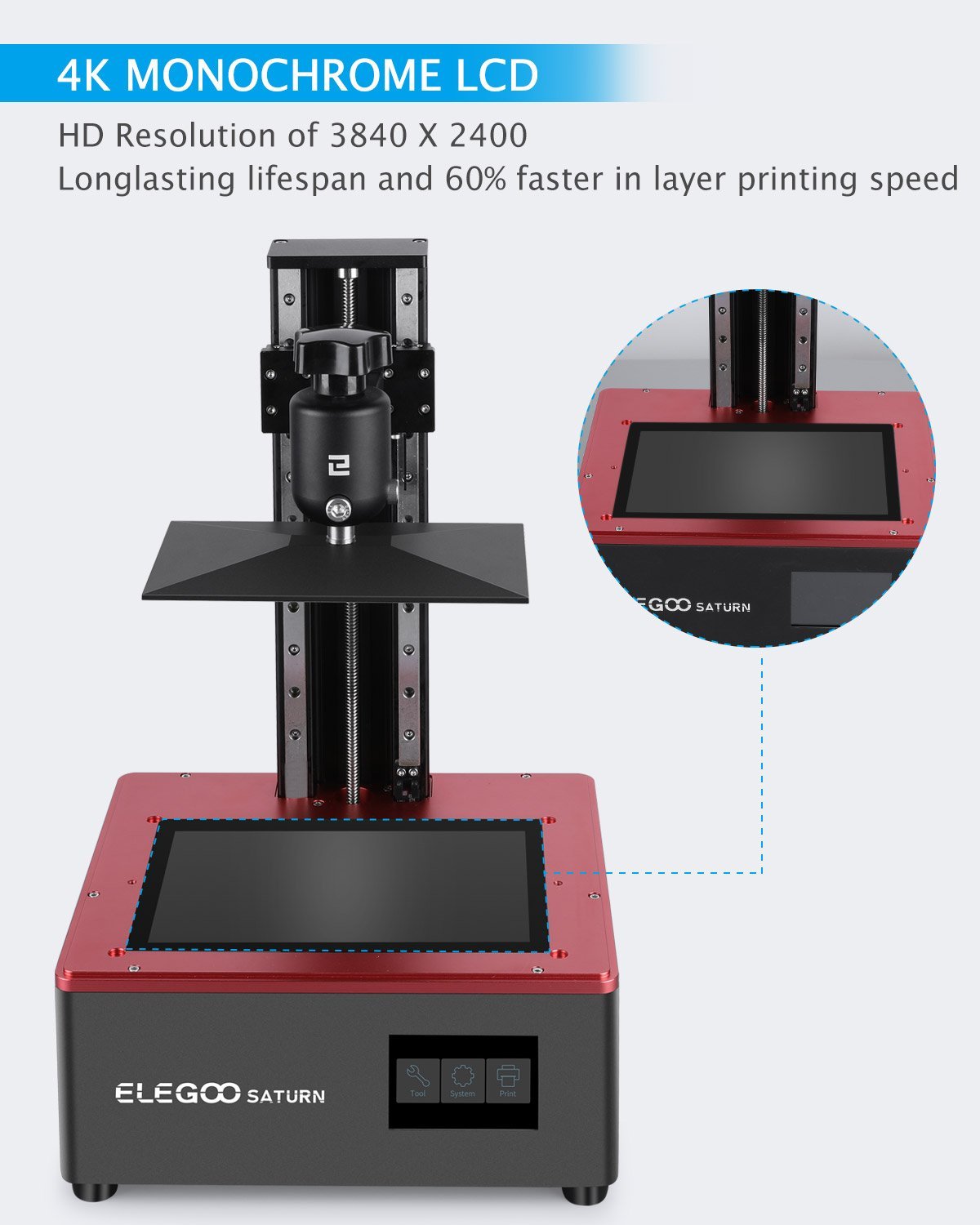

【Faster printing speed】Elegoo Saturn LCD 3D Printer comes with an 8.9inch 4K Monochrome LCD with an HD resolution of 3840 x 2400, reducing the layer printing time to 1.5s-2s, which is 60% faster than Mars Pro yet still delivers outstanding printing results.
【Larger build volume】Elegoo Saturn LCD 3D Printer has a large printing volume of 192*120*200mm/7.55in*4.72in*7.87in, and you can print multiple full-sized models at the same time, which can dramatically improve your productivity.
【Higher precision and easier printing】Z-axis utilizes a double linear guideway structure, which can achieve steadier motion and greatly enhanced moving accuracy. With the ethernet port on the back and 4GB built-in data disk, Saturn now supports file transfer through your local area network, which is very handy for fast printing.
【Quality Prints and Consistent Success】Matrix light source consists of 54 UV LED lights with uniform light emission, ensuring superior print results and a more accurate printing size. The set screws on the build plate assure longlasting leveling, no need for frequent calibration, and the sandblasted surface provides a much stronger adherence, especially when printing large 3D models.
Elegoo Saturn LCD 3D Printer Parameters and Specification:
System: EL3D-3.0.1
Operation: 3.5 Inch Touch Screen
Slicer Software: Chitubox
Connectivity: USB
Technology: LCD UV Photocuring
Lightsource: UV Integrated LED lights (wavelength 405nm)
XY Resolution: 0.05mm(3840×2400)
Z Axis Accuracy: 0.00125mm
Layer Thickness: 0.01-0.15mm
Printing Speed: 30mm/h
Power Requirements: 100-220V 24V4A 96W
Printer Dimensions: 11.02in (L) * 9.44in (W) * 17.55in (H) 28cm(L) * 24cm (W) * 44.6cm (H)
Build Volume: 7.55in (L) * 4.72in (W) * 7.87in (H) 192mm (L) * 120mm (W) * 200mm (H)
Weight: 29.76 Lbs (13.5 Kg)
Finish Kit includes:
Saturn 3D Printer * 1
Build Platform * 1
Resin Tank * 1
U Disk * 1
Mask * 2
Gloves * 3
Metal Scraper * 1
Plastic Scraper * 1
User Instruction * 1
Funnel * 10
Measuring Cup * 1
Backup Screws * 1
Adapter 120W * 1
Tool Kit*1
Leveling Paper*1
